단상 제어 변압기

15KVA Single Phase Encapsulated Dry Type Transformer 480V to 120V with NEMA 4X Stainless Steel Enclosure

모든 범주

삼상 반응기

저희와 연락

Mr. Steven

steven@winley-electric.com

86-18650108051

지금 연락하세요

15KVA Single Phase Encapsulated Dry Type Transformer 480V to 120V with NEMA 4X Stainless Steel Enclosure

브랜드 이름:	WINLEY
모델 번호:	DG-15KVA
MOQ:	1 유닛
가격:	$500~$60000/Unit
포장에 대한 세부 사항:	합판 케이스
지불 조건:	티/티

자세한 정보

제품 설명

자세한 정보

원래 장소:

ISO,CE,UL/cUL

모델 번호:

DG-15KVA

단상 캡슐화 변압기

15 kVA

입력 전압:

출력 전압:

동봉하다:

NEMA 4X 304 SS

절연 등급:

냉각방식:

공기 냉각

공급 능력:

10000Units/월

강조하다:

Dry Type Transformer

Single Phase 480V Dry Type Transformer

15KVA Dry Type Transformer

제품 설명

15KVA Single Phase Encapsulated Dry Type Transformer Low Voltage 480V to 120V Glue Filling NEMA 4X 304 SS DOE Efficiency

Single-phase encapsulated (dry-type) transformers use solid insulation to provide electrical insulation and cooling, eliminating oil or liquid-filled insulation. Commonly used indoors for improved fire safety, environmental compatibility, and easier installation, "encapsulated" means the windings and core are embedded in solid potting material.

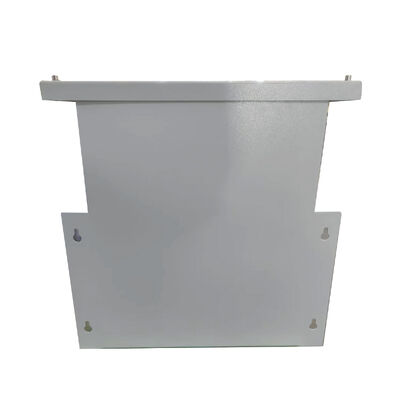

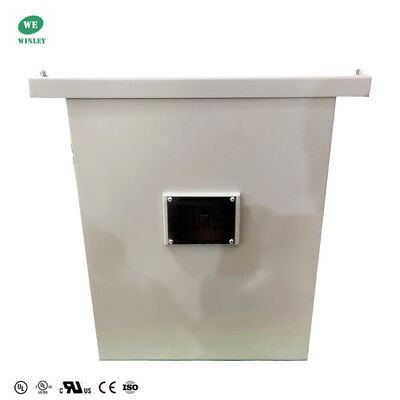

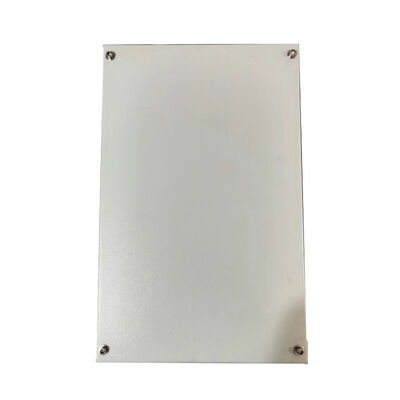

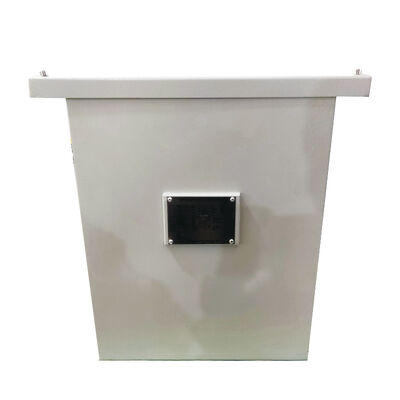

Enclosure: constructed from high-quality 304 stainless steel for superior corrosion resistance, mechanical strength, and lasting appearance, the housing protects internal components from moisture, chemicals, and environmental contaminants common in industrial and outdoor sites. Built to NEMA 4X standards, the watertight, corrosion-resistant enclosure is suitable for outdoor and washdown environments and resists windblown dust and rain, splashing and hose-directed water--making it ideal for coastal, chemical-processing, and other harsh conditions.

Technical Specifications

Model	DG-15
Type	Single-phase encapsulated transformer
Phase	Single phase
Capacity	15KVA
Primary Voltage	480V With 2x2.5% FCAN,4x2.5% FCBN taps
Secondary Voltage	120/208V
Frequency	60Hz
Insulation Level	H
Winding material	Copper/Aluminum
Enclose material	NEMA 4X, 304 stainless steel
Cooling Method	Air cooling
Operating temperature	<115℃
Certification	ISO,CE
Efficiency	>98%

Outline Drawing

Key Benefits

Dry-type insulation: They use solid insulation instead of oil, eliminating the risk of oil leaks and associated environmental hazards.
Improved fire safety: With no flammable liquid present, they are safer for indoor installations and better meet strict fire-safety codes.
Environmentally friendly: The absence of oil reduces the potential for soil or water contamination.
Low maintenance: They avoid oil-related upkeep such as sampling and testing, lowering routine maintenance needs.
Flexible installation: They can be sited indoors without special vaults or containment systems since there's no oil spill risk.
Lower cooling demands: The encapsulation material provides insulation and thermal management, so cooling requirements are generally less than for oil-filled units.

Applications

Single-phase encapsulated transformers are commonly used in various applications, including commercial buildings, industrial facilities, hospitals, schools, data centers, and more.

Production Process

태그:

단상 제어 변압기

산업용 제어 변압기 240V ~ 24V

제어 전원 변압기 220V

제품 세부 정보

집 > 상품 >

단상 제어 변압기

15KVA Single Phase Encapsulated Dry Type Transformer 480V to 120V with NEMA 4X Stainless Steel Enclosure

모든 범주

오일형 변압기

3단계 패드 장착 변압기

단일 단계 패드 장착 변압기

극 장착 변압기

주사위 변압기

No input file specified.

삼상 건식 변압기

삼상 절연 변압기

의료 절연 변압기

산업용 제어 변압기

단상 제어 변압기

토로이달 절연 변압기

EI 전력 변압기

삼상 자동 변압기

삼상 전압 조정기

삼상 반응기

15KVA Single Phase Encapsulated Dry Type Transformer 480V to 120V with NEMA 4X Stainless Steel Enclosure

브랜드 이름:	WINLEY
모델 번호:	DG-15KVA
MOQ:	1 유닛
가격:	$500~$60000/Unit
포장에 대한 세부 사항:	합판 케이스
지불 조건:	티/티

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

브랜드 이름:

WINLEY

인증:

ISO,CE,UL/cUL

모델 번호:

DG-15KVA

모델 번호:

DG-15KVA

유형:

단상 캡슐화 변압기

용량:

15 kVA

입력 전압:

480V

출력 전압:

120V

동봉하다:

NEMA 4X 304 SS

절연 등급:

시간

냉각방식:

공기 냉각

최소 주문 수량:

1 유닛

가격:

$500~$60000/Unit

포장 세부 사항:

합판 케이스

배달 시간:

10-15 일

지불 조건:

티/티

공급 능력:

10000Units/월

강조하다:

Dry Type Transformer

Single Phase 480V Dry Type Transformer

15KVA Dry Type Transformer

제품 설명

15KVA Single Phase Encapsulated Dry Type Transformer Low Voltage 480V to 120V Glue Filling NEMA 4X 304 SS DOE Efficiency

Technical Specifications

Model	DG-15
Type	Single-phase encapsulated transformer
Phase	Single phase
Capacity	15KVA
Primary Voltage	480V With 2x2.5% FCAN,4x2.5% FCBN taps
Secondary Voltage	120/208V
Frequency	60Hz
Insulation Level	H
Winding material	Copper/Aluminum
Enclose material	NEMA 4X, 304 stainless steel
Cooling Method	Air cooling
Operating temperature	<115℃
Certification	ISO,CE
Efficiency	>98%

Outline Drawing

Key Benefits

Dry-type insulation: They use solid insulation instead of oil, eliminating the risk of oil leaks and associated environmental hazards.
Improved fire safety: With no flammable liquid present, they are safer for indoor installations and better meet strict fire-safety codes.
Environmentally friendly: The absence of oil reduces the potential for soil or water contamination.
Low maintenance: They avoid oil-related upkeep such as sampling and testing, lowering routine maintenance needs.
Flexible installation: They can be sited indoors without special vaults or containment systems since there's no oil spill risk.
Lower cooling demands: The encapsulation material provides insulation and thermal management, so cooling requirements are generally less than for oil-filled units.

Applications

Single-phase encapsulated transformers are commonly used in various applications, including commercial buildings, industrial facilities, hospitals, schools, data centers, and more.

Production Process
