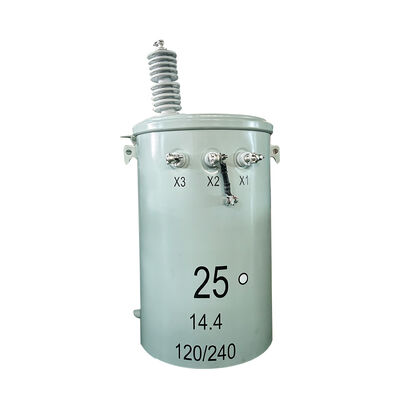

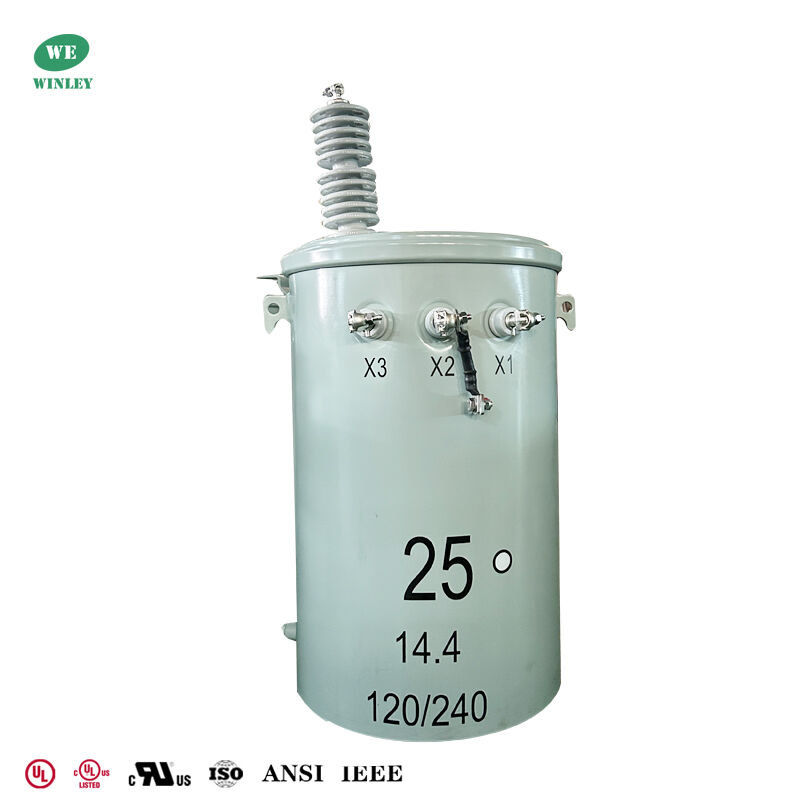

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard

브랜드 이름:	WINLEY
모델 번호:	D-25/13.85
MOQ:	1개
가격:	$1000-$10000
포장에 대한 세부 사항:	합판 케이스
지불 조건:	티/티

자세한 정보

제품 설명

자세한 정보

원래 장소:

UL/cUL, CE, ISO

변압기 유형:

극 장착 변압기

25KVA

1차 전압:

13856GrdY/8000

2차 전압:

120/240

냉각방식:

권선 재료:

CSA C2.2-06/CSA 802

공급 능력:

1000 세트/월

제품 설명

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard cUL Certified

Winley Electric’s 25 kVA single‑phase pole‑mounted transformer is a compact, rugged solution designed for Canadian overhead distribution needs. CUL certified to Canadian/North American standards and backed by a 30‑day delivery promise, this unit meets utilities’ and contractors’ requirements for reliability, code compliance, and fast turnaround.

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard 0

Winley Electric's pole-mounted transformer UL and CUL certificates

UL certification cUL certification

Key specifications

Type: Pole‑mounted (conventional)
Capacity: 25 kVA
Phase: Single‑phase
Primary voltage: 13,856 V GrdY/8,000 (Grounded Wye)
Secondary voltage: 120/240 V (additive polarity, vector group Ii6)
Primary bushing: 15 kV class, BIL 95 kV porcelain
Secondary terminal: (3) 1.2 kV class, BIL 30 kV 2‑hole spades
Tap changer: Off‑circuit, range ±2 × 2.5%
Cooling: ONAN
Frequency: 60 Hz
Insulation class: A (105 °C), Temp rise 65 K
Losses: No‑load 104 W; Load (85 °C) 377 W
Impedance: 1.5–3.0%
Windings: Aluminum/Aluminum; Core: Silicon steel
Insulation fluid: Mineral oil; Tank: Coated steel (Munsell 5BG grey)
Dimensions (approx.): 510 × 590 × 1100 mm; Weight ≈ 240 kg
Service: Outdoor, ≤1000 m altitude
Standards: CSA C22.2 (CSA C2.2‑06/CSA 802) — CUL certified

Technical drawings

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard 4

Benefits summary

CUL certified for Canadian acceptance and safety compliance
Industry‑leading 30‑day delivery to meet tight schedules and emergency needs
Compact, durable design for straightforward pole mounting and reduced labor time
Low losses and proven materials for efficient, long service life
Field‑ready terminals and off‑circuit taps for flexible voltage adjustment

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process
